Another motivating story- finding a bug that was crucial in time

Motivation is a driving force…

Motivation helps us to go forward…

……..

and I can go on and on like these quotes about motivation. The profession i’m on is one of the most less interesting job (to many people). They don’t find enough to interest to work in this line for a long period of time. For a short period of time, it can give more money than the other alternative jobs. So some people choose this line as a temporary job and then once they find their own line of job, they switch over to that line.

Motivating factors are different depending on each person's personality/ mentality. I was reading one article about motivation and found some interesting point about it. I do not know enough about the author Audrey Marlene, liked his point of view regarding this. She mentioned on her motivation article-

“Determine What Drives You - as humans are enticed by one or more of the following: Take a look and see which one(s) you can relate to. Ambition Money Independence- To feel in charge of your own life Security- job security, financial security, peace of mind Status/Power/Prestige Self-esteem/The good feeling you get after getting the task done Opportunity to improve, to grow and become more capable. Recognition and respect from others after a job well done. Making a difference/ the feeling you get inside You are competitive/ you have to feel that you are gaining ground and winning every time. ”. [1]

Like I said each person has different trigger, one or many of these above mentioned factors works. I know what makes me motivated and I can tell it just from her above points.

I can’t help sharing a real story about a bug finding that was crucial in terms of time and impression of the company to the (influential) client and also how I got my reward at the end.

Without mentioning anyone's name, let’s say some company sell different device/ equipment to their clients. After purchase, sales rep goes and does a in-service (describes how it works, what to do etc) session with the client. During the in-service session, sales rep struggled with few issues with the device. This device is driven by software. On the software, you select a patient, then select a protocol and run the test and the device starts running with “patients”. (Patients, not regular healthy human being. So it is pretty important to work safely and more importantly it should work as “expected”.)

So Sales rep selected a patient and then selected a protocol that was created and then running the test. During the test, sales rep observed that it is not working properly. So the sales rep places call with service department to provide an solution so that client can run the machine. It went back and forth with sales rep and service department and they could not find any solution. Service department could not reproduce the issue. After two weeks, with no solution, it was getting more and more frustrating to the sales rep and to the client.

So I got a mail, after two weeks of the incident, from service department that stating the issue and mentioned “Customer is getting quite frustrated with this ”.  The way it was reported by service department was not enough (and to some extent it was misleading).

Their complaint was :

1. “The torque is set for 300 ft-lbs for all sets (10 of them), At some point during testing, the system locks up.  At that point they look at the protocol and it has reset all the torques to 6.”

2. At some point of time, they see out if 10 sets, 4 of them retained the 300 ft-lbs values and rest of them changed to 6.
3. When they are in above situation (#2), system does not behave properly.

So I started my usual methods of getting info about the issue they were getting.

1. Asked for the details step by step procedure how they created protocol (as they created it with modified values, not with default values)
2. Asked how did they run the test
3. Snapshots of each screen they were going it through
4. If possible video of the whole issue that was happening.

While waiting for the things that I asked, I went to service department to see how did they try to duplicate the issue. First step was to create a custom protocol with a 10 set, 300 ft-lbs torque value. They created the protocol for 10 set with 300 torque value and saved the protocol. Upon retrieval, it also shows the value. So we did not see anything obvious there. Then continued with the second step to run it. It was okay as well. So, it is true that service department could not duplicate the issue. I spent some time trying to duplicate the issue and could not figure out initially. Then to rule out whether it’s a machine dependent issue, I again asked them to create the same thing on another machine. On a second try,  they created the protocol by directly typing the 300 value to the drop down box and then saving it. While creating it, they entered all the value and then found it was supposed to be Exercise type and not test type. So then changed the type and noticed that all the torque value resets to defaults value “6” instead of “300”. Now that’s a good news to me that we at least seen the scenario what sales rep was seeing at client site. As sales rep will be going back to that site again, she wanted a solution before she can go back there. I’m under pressure to find the problem or provide them alternate solution. At that point I tried to give one alternate solution so that they can work with something. So I kept digging.

While doing it repeatedly (entering the value on the torque), at some point of time I exited out from application and came back to retrieve that protocol and found it defaults to value “6” instead of “300”. This is the second time it happened and two different way. Meanwhile I received more info that I requested for and it was more or less same what service department did. As I have seen the first complaint i tried to concentrate on that. Rest of the complaint was based on invalid state, so I gave less importance to them. I know the problem started from protocol screen so i tried few more combination on that screen. One time, when I selected the value of 300 from the drop down and saved the protocol for each of the 10 set and it Worked!

Finally, found the problem. Silly problem but it was crucial at that moment. Basically the problem was, as a drop down box, like all other drop down box of that screen, user supposed to select value from the list and not directly enter the value.  The reason they entered the value was the 300 value was at the bottom of few listed values. It would take some time to select from the end of the list and do it 10 times. User choose shortcut, application did not restrict it and did not support it. When user enter the value application does not recognize the value as listed value and thus defaults back to value “6”. This scenario also explains about their complain of #2.

What is the relation of this finding to the motivation? Well the answer come to the last part of the story. So, finally when I figured out the issue, I relay it to sales rep. Sales rep avoided that scenario and everything went smooth. It’s a minor bug with the software but as long as user does what they supposed to do, we have a interim solution. Client was happy with the solution and so does the sales rep (avoided embarrassing situation at the client site).

Sales rep was so happy with the effort (and kind enough) she wrote a mail to the company president about her experience at the client site and the way we provided her solution under stress. She explained the crucial moment “customer's confidence in us was shrinking! ” and then the way we gave us the solution, she was able to gain it back. She wrote, “The reason for my email is just to compliment everyone for their teamwork and undying effort to get this resolved.” “Upon leaving <Client site> today, their head trainer gave me a hug and has invited me back for further in-service training. I love it! This worked exactly as things should for the customer!  ”.  And then my president thanked me as well in a reply.

I could not help myself quoting from her mail. Those are the words that motivates me doing my work more and more. I’m a tester, do not provide a bug fix, but provides/ offers alternate solution to avoid the scenario and keep going for the time being. As long as I get inspiring words like this, these are my rewards that helps me doing what I do and what considered as boring job to many people. Money is not all we live for, as per Audrey Marlene's article,  I had “Self-esteem/The good feeling you get after getting the task done”, “Recognition and respect from others after a job well done”, “Making a difference/ the feeling you get inside”.

Sources:

[1]. Motivation by Audrey Marlene, MS

Printed Report vs Preview report does not display same value....

Interesting bug!

So…. I tested a product, verified everything working as it supposed to be. And then customer complains it is not working correctly. Usually that whats we get as initial reaction from customer. Upon several email back and forth we came to know that customers complain was right.

Customer complained that one of the product’s report is printing incorrect value on printed report, but when it preview it, it displays the value correctly. This is one of the weird thing I have heard so far. My initial reaction was, which was completely wrong, it is NOT possible to view some value and then print other value.

[I kind of develop reports for different program myself. I’m actually quite good at it even though I know only few types of report technology. From that knowledge I know that it is not possible.]

Lets see what was the problem...

When customer was printing the report, they noticed that the value of particular column displayed incorrect values on the printed report. The value was displaying “15.2”, “1.4” and “1.4” (as circled with red color in the below picture).

The correct value or the value displayed on print preview was “115.2”, “11.4” and “111.4”

What was happening is, when the report prints if the value is ”11” then it was printing as “1”, two 1 overlapping on the same location making the value as 1.  So, if the value is “11.4” it was printing as “1.4” and for “111.4” as “1.4”. It does not do this for any other value, only the value that starts with 1’s. The value of 10, 9 , 101 everything was working.

When customer was seeing the value on print preview, it was a pdf preview and everything was fine. But for some peculiar reason when it is printed with SOME series of hp deskjet printer (which was the supplied printer with the product) was behaving this wired. It prints on laser jet fine, prints on newer printer fine as well.

Now what is my learning here  as QA. We often do not have ideas how the software is made, what technology is used, what are the shortcoming of those particular technologies. With my test cases, I covered the print preview, prints and verify the values of some sample reports. During my testing, I did not come across any value that particularly starts with only “1”s. So I missed it. If you look into the incorrect picture you will see that the value displayed as “1.4”, the “1” is bold as it was printed three times on that same place. With some reporting tools/ technologies, sometimes it prints twice on same position making the thing bold/ thicker. Even if I came across that scenario, for the bold issue, I might have taken it as expected value.

Not everything you can calculate and verify. But at least, learning from this kind of incidents, you can educate yourself and look for this kind of issue on other products. The only thing we can assume, is we can’t assume in testing. It has to be based on expected values in every steps.

Basics of Software Testing - Part-VII : Software Testing with example

A little background about this - Each person may have their own way of testing or finding issues. They may not necessarily find my method helpful to understand the basics, this is something i'm trying to generalize for the newcomers in software/ firmware testing.  My intention is to make a series out of it, if i can and get enough motivation to write the basic stuffs.

So far we know what is a software, environment, SDLC, STLC, different types of software testing. Now, we will see how to test a software with example.

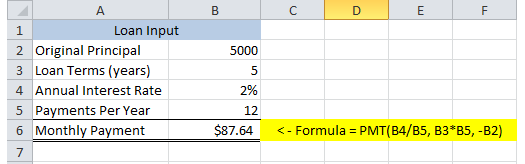

Lets start a test for the Student loan program or sometimes call calculator. What is does is, it gives the amount of how much you need to pay per month as well as how much it will cost you through out the year. You can also see how making extra payments will affect your pay off date. You can google search it and practice it on any of them.

So we will be doing a functional testing on a project. I usually starts from the Home screen. In our example, above is the home screen.

Testing steps:

1. This is one of the quickest way to find issues is to perform a data validation using the following criteria for the sample project. For positive data it should accept the amount, for negative / invalid data it should handle it and display proper error message.

2. Make sure the required field are either marked or on submit application displays error messages on required fields .

3. Make sure the entered Loan amount is okay using the validation criterias.

4. Confirm that if for example the loan amount can not take a negative value, it should display error message stating that and should not blow up. User need to know the min and max value. It could be mentioned with the error message or it could be mentioned as a label.

5. For loan term, it can be either year or month. If we enter a year, it will display the corresponding month and if we enter a year it will display the corresponding month. Make sure that it behaves this way.

6. Confirm that if for example the loan term month can not take decimal value then it should display error message.

7. As label indicates, Interest rate value would be a percent number. That means it will be later divided by 100. Make sure it passes the data validation  criteria.

8. For the Loan start date, depending on how it designed according to the Specs, i would assume it should be forward date. I can’t be sure whether it was designed this way or not, it looks like it allows previous dates/ years.

9. Finally, when all data inputs are okay and values are valid, then clicking on Calculate button will display the value on Monthly Payment.

10. Verify the Calculate button displays the correct value for per month. Verify it using the following formula in excel or manually. We need to make sure the calculation is right. For excel you can write the formula on B6 field as “=PMT(B4/B5, B3*B5, -B2)” to get the monthly payment.

11. Make sure that, even the Monthly Payment field is a text fields which looks similar to input field it should not allow entering any value on this field. This will be a GUI testing. Check with Specs.
12. Also notice that the amount field text box is not aligned with all other text box for a prefix of “$”. I would double check with the UI specs for this as well.
13. Check for any default values. On this particular case, it was displaying an example format on each text box. As soon as user starts typing on those fields, they were disappeared which was expected. Confirm that the application calculates based on the amount you entered, not the default amounts.
14. Check the spelling of all the labels.

Data Validation Criteria

Field Name	Criteria
Common/ All	Null / empty / blank space  as  input and thus check for the Required fields. Check for the Min field length. Check for the Max field length. Check the data type and determine the possible invalid inputs. Enter single quote ( ‘  ) to check whether database can handle it. Enter valid input combinations
Loan Amount	Negative amount - It should display error message. Amount with decimal point up to max input. Amount with single point decimal point. Long number up to max input allowed. Enter String instead of numeric value. Enter different characters instead of numeric value. Enter commas with a numeric entry. Try with valid ranges, should accept the data without any complain.
Loan Term	From above snapshot, it looks like it can take real numbers as number of years and numeric for months. Number of years should also allow to accept whole numeric numbers. For loan term in year, enter min and max allowed real number. For loan term in month, enter min and max allowed numeric number. For loan term in month, enter a number with decimal point. It should display error message as decimal number in month is not allowed. Try the negative numbers in both year and month. Should not be allowed. Try with valid ranges, should accept the data without any complain.
Interest Rate	Enter values ranging from min (0) to  max(99). Enter values below and above the min and max correspondently. Enter whole number . Enter number with decimal points.
Loan Start Date	Allows to select Year, Month, Day from the dropdown list. Should not allow to write anything on these fields.

Now where do you get these things? If you are lucky enough to work with a structure company, chances are you will get this document right away. Else, you will have to prepare it by yourself. Most of the times, it is basically a one time document, you just add them according to project and new fields.

So far we have done the functionality testing. Now we need to test few other things for this web application:

1. Make sure this web application is accessible using other browsers.
2. Make sure the loan term month and years auto calculation script works.
3. Make sure web browser session & cookies does not expire while you  are working on it. Testing cookies (sessions) are deleted either when cache is cleared or when they reach their expiry.
4. Make sure every time you visit this page, should always come as blank form.
5. Make sure multiple load is handled correctly.
6. Make sure concurrent entry does not create any issue.
7. Make sure the refresh or F5 works properly. It should update the page correctly. Any changes made on the page and submit button was not pressed, refreshing the screen should discard that entry and refresh the page with original entry.
8. Make sure browser back button and forward button works properly. When the back button is pressed and then the forward button is pressed, make sure it comes with blank page/ session. It should not just keep the previous entries.
9. Make sure web application does not allow to take input using the URL submission. For example, whatever the name of the website and application, try appending the word “?amount=234560” without the quotes. If it accepts the value and changes the value of the amount field then this could possibly be vulnerable to the BOSS people (hackers).



http://www.someweb.com/calculators/college-planning/loan-calculator.aspx?amount=234560

10. Make sure it can distinguish between an entry from human vs entry from automated bot. Using the Captcha it protects entry from bots. Otherwise, at any point, any bot can keep entering the values and thus creating load on the site. Other people may not be able to access it at certain point.
11. Check all other links on the web page. It should not display any dead link on the page.

Other observation
If you search for Student loan calculator you will find links. Click on them and you will get a webpage that will display the student loan amortization details. Many of them used to be open like the one i have chosen. Then after getting bombarding by the testing tutorial classes, they put it under user registration. This site should also have done it, otherwise, they are vulnerable to many points like steps 7, 8 if not many more. Also they were not using the Https as well!

If we summaries it then you will see, through out these steps we have performed,

• Functional Testing,
• Usability Testing,
• GUI Testing,
• Compatibility Testing,
• Load Testing,
• Performance Testing,
• Security Testing and
• some other common web application properties testing.

Few things we did not do here as they were not applicable. For example, Database testing - as no database was involved, Web service connectivity - single page calculates value. This is how you need to correlate the theory of testing and implement and perform it as needed on software.

This is how i would try to test this project. This was a very narrow function example. I would say, a software is consist of such small functions and once we identify the features, we will be able to perform testing on each individual pieces.

Next, may be i'll try few more examples to give more idea. I'll also try to include at least one example for firmware testing in future. . And I would urge people to excuse my mistakes during writing up this series. I test other works, does not necessiarily means that I can’t make mistakes

Everybody has their own way of doing it and I respect all of them as long as it covers everything.

Basics of Software Testing - Part-VI : Different Types of Testing

A little background about this - Each person may have their own way of testing or finding issues. They may not necessarily find my method helpful to understand the basics, this is something i'm trying to generalize for the newcomers in software/ firmware testing.  My intention is to make a series out of it, if i can and get enough motivation to write the basic stuffs.

This may not be so interesting topic to read, but sometimes it is needed to know some keywords. I’ll try to express them in simple language (if possible avoiding any definition/ jargon).

Testing can be categories in two major parts:

1.0  Black Box Testing

2.0  White Box Testing

[It can be categories in many ways. Depending on what angle you look into it. The way i’m dividing may not necessarily be the only way. ]

1.0 Black Box Testing  - It is nothing related to “Black Box” as the word says, but it’s about testing the software with knowing anything internal and check the output against the Specs. [1]The tester is aware of what the software is supposed to do but is not aware of how it does it.

2.0 White Box Testing - Usually done by the developers. And yes, we are not the only one who test, developers also test their software by writing some test code. Internal knowledge of the software is vastly needed for this kind of testing.

Little bit more description about these two broad categories:

Black Box Testing
Functional Testing Graphical User Interface Testing Internationalization	Equivalence Partitioning Boundary Value	End-to-End  Testing User Acceptance Testing (UAT)	Smoke Sanity System Testing Regression

Functional Testing - Without knowing any internals of the software, you enter input and examine the output according to the Specs. Think about the features of a software. All of those features are functions and thus to test all those feature what we do is the functional testing.

Equivalence Partitioning -  is kind of technique that is used in functional testing. I would say more of technique then a type of test. [1]It is a software testing technique that divides the input data of a software unit into partitions of equivalent data from which test cases can be derived. [4] In equivalence partitioning technique we need to test only one condition from each partition. This is because we are assuming that all the conditions in one partition will be treated in the same way by the software. Similarly, if one of the conditions in a partition does not work, then we assume that none of the conditions in that partition will work so again there is little point in testing any more in that partition.

We all have seen the School grading system. Just want to give one specific example. School grading system says if marks between 80-89 then A-  marks >= 90 then ‘A+’ and so on. Obviously there are many more grades, just want to discuss this.

1. Checking the Range- Marks falls into different conditions/ ranges. If we check one condition, other should also be same. If we check for the conditions that says about ranges then we do not have to test other ranges.
2. We need to check the Lower and Greater condition as well. Anything below 60, anything above 90 condition needs to be checked.
3. Also, we assumed that marks will be positive. What if the marks is negative (someone pissed off the teacher). Invalid partition test needed.

If we want have more understanding, follow the reference [4] for another example.

Boundary Value -  is another kind of technique that is used in functional testing. It is related to the Equivalence Partition testing. It it testing at the boundaries between partitions. We need to check the boundaries of the input. Here we have both valid boundaries (in the valid partitions) and invalid boundaries (in the invalid partitions). Most of the software has input fields. Let’s say it takes some numeric value for Age. First we have to find out the min and max allowed value for such input. Then we can try three conditions - within the min max range, above the max, below the min value.

Data Validation - It is a technique that ensures the integrity of the data. Data validation is intended to provide certain well-defined guarantees for fitness, accuracy, and consistency for any of various kinds of user input into an application or automated system. When i get the first build, in order to occupy them with some feedback/ issues, first thing I try is to check whether it can handle different kinds of input. Above mentioned two techniques are part of this test.

Graphical User Interface Testing -  It is about testing the User Interface as per the given sample design. Sometimes customer wants something in specific order/ place. This will make sure that everything was placed as it should be. It is easy to go crazy about testing the Graphical User Interface because you can put argument from many angle. Just make sure you don’t carried away with this type of testing. I recommend to be flexible about the minor/ trivial GUI issues. One thing to mention, always to a spell check on labels. It’s a part of this test, if not, I included them now.

Internationalization Testing - Software may needed to support different international settings. For example, software needs to be compatible with the operating system’s setting so that with a given input with different language/ region/ format it does not blow up. A software that intent to work with German language and region should have the mechanism to handle the commas instead of dot to represent a German floating point number. Germany usages 1.211,2 which is equivalent to 1,211.2 in English. This test could also be termed as Globalization, localization test.

End-to-end Testing - [2]End to end testing is performed by testing team, focus of end to end testing is to test end to end flows e.g. right from order creation till reporting or order creation till item return etc and checking. End to end testing is usually focused mimicking real life scenarios and usage. End to end testing involves testing information flow across applications

User Acceptance Testing - This would be the last part of testing phases. At the end of all the testing, software is given to user/ client to look at it, whether it meets user expected features or not. This is usually a checklist type of test. User sign of the UAT document before releasing / taking the software. This is to check whether it meets their business requirement.

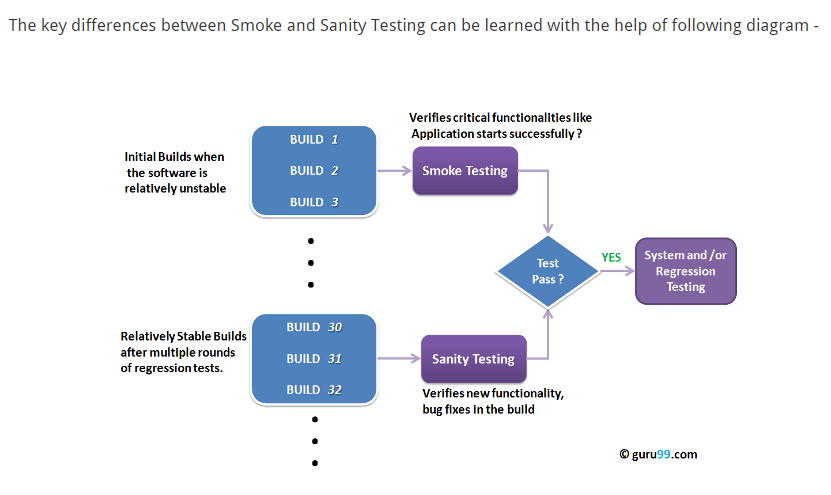

Smoke Testing - Smoking! This about checking the stability of the build given by the developer whether it’s good enough to test or not. Usually you can pick one or few major functions randomly and check whether it worth to test the rest of the build functionalities. If any of the major functionalities fail then it's a Show Stopper and build is rejected to test. It’s like cooking rice, pick a few and get the sense whether rest of the rice is eatable or not.

Sanity Testing -  [3]Sanity testing is a quick evaluation of the software, environment, network, external systems are up & running, software environment as a whole is stable enough to proceed with extensive testing. Sanity tests are narrow and most of the time sanity tests are not documented. [5] After receiving a software build, with minor changes in code, or functionality, Sanity testing is performed to ascertain that the bugs have been fixed and no further issues are introduced due to these changes

System Testing - [2] this includes multiple software testing types that will enable to validate the software as a whole (software, hardware and network) against the requirements for which it was built. Different types of tests (GUI testing, Functional testing, Regression testing, Smoke testing, load testing, stress testing, security testing, stress testing, ad-hoc testing etc.,) are carried out to complete system testing.

Picture Courtesy: Guru99.com

Regression Testing - Do it again and again and again. Regression testing is about doing the testing on the full system again and again. When we start testing and find issues, developers fixes some issues. At that time we just don’t sit idle. We keep going testing other component or features. Once we get the fix we verify those particular fix and then we re-run the whole test on the software. This will ensure that for a particular fix, nothing is broken unexpectedly. This is the hard part for a human being. For the Manual tester, this is the nightmare. That is why, more and more automated testing is getting popular only for this area.

White Box Testing

Unit Testing Component Testing

Unit Testing - I always gets different option when I put this test under the White Box testing. It’s not about whether it belong to white box or not, it is about who is going to perform it. With all respect, developers are the one who should be able to use this kind of testing more effectively than any others. Developers will write test fixture/ suits to test the internal part of the program. They can test a single function or they can test a series of function or class mimicking the inputs using the code.  Some tools are : dB unit testing, HTTPunit testing, Junit Testing, NUnit testing. This is not the traditional “automation testing” but it indeed an automation testing by the developer.

Component Testing - [2]This type of software testing is performed by developers. Component testing is carried out after completing unit testing. Component testing involves testing a group of units as code together as a whole rather than testing individual functions, methods.

Other types of Testing
Integration Testing Security Testing	Load Testing Performance Testing  User based scenario testing	Recovery Testing Conversion Testing Safety testing			Alpha Testing Beta Testing

Integration Testing - [4]Once the individual units or components are tested by developers as working then testing team will run tests that will test the connectivity among these units/component or multiple units/components. There are different approaches for Integration testing namely, Top-down integration testing, Bottom-up integration testing and a combination of these two known as Sand witch testing.

Security Testing - This is the most challenging testing. No matter what we do, they (the BOSS people) finds a way to sneak in. Security consist of many things from Network, Hardware, Database, software etc all component has their own protection mechanism. For software, i would generalize it as check for the common exploit options - like SQL injection, URL encryption for POST, inputs, use of public variables instead of private etc. [2]Security testing basically checks, how good is software’s authorization mechanism, how strong is authentication, how software maintains confidentiality of the data, how does the software maintain integrity of the data.

Load Testing - How much load it can take is the load testing. [4]Load testing is a type of non-functional testing; load testing is done to check the behavior of the software under normal and over peak load conditions. Load testing is usually performed using automated testing tools. Load testing intends to find bottlenecks or issues that prevent software from performing as intended at its peak workloads.

Performance Testing - [2]is a type of software testing and part of performance engineering that is performed to check some of the quality attributes of software like Stability, reliability, availability. Performance testing is carried out by performance engineering team. Unlike Functional testing, Performance testing is done to check non-functional requirements. Performance testing checks how well software works in anticipated and peak workloads. There are different variations or sub types of performance like load testing, stress testing, volume testing, soak testing and configuration testing.

User Based Scenario Testing - Sometimes people call them 1% scenario or Negative scenario testing. I personally think, this is a pretty important testing where we usually miss to understand the user’s possible behavior. I have studied many sites and most of them seems to give important to this type of testing. To learn about more, please read my first posting of my blog, which i’m pretty confidant that you will think about it twice once you read the blog.

Recovery Testing - [1] In software testing, recovery testing is the activity of testing how well an application is able to recover from crashes, hardware failures and other similar problems. Recovery testing is the forced failure of the software in a variety of ways to verify that recovery is properly performed.

Conversion Testing - Conversion testing is to verify that one data format can be converted into another data format so that the converted data format can be used seamlessly by the application under test appropriately.

Safety Testing - Safety first. Software are not always like software. It could drive a device/ machine/ car/ etc. When it gets into such level, and when it interacts with the people, we need to make sure that software does not raise any issue that can harm people. For example, if you are testing a treadmill which has the software control over the speed, we need to make sure no matter what scenarios it may occur, the stop button will always stop the mill gradually. Abrupt stop may actually cause accident, so it should slow down gradually.

Alpha Testing - Alpha testing is basically by a fresh pair of eye testing. After testing is done, to check by a fresh unbiased pair of eye, it is sent to internal users to test.

Beta Testing - Done by the end users. Possible sites are chosen to try the beta version of the software before releasing it to production. Once the feedback is given by the customer and they find it ok, then the UAT is signed off and software is ready to release.

References:

[1] Wikipedia

[2] http://www.testingexcellence.com/types-of-software-testing-complete-list/

[3] http://www.softwaretestinghelp.com/types-of-software-testing/

[4] http://istqbexamcertification.com/what-is-equivalence-partitioning-in-software-testing/

[5] http://www.guru99.com/smoke-sanity-testing.html
